| FLOW RATE | First | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 164ft | 328ft | 492ft | 984ft | 1640ft | 2460ft | 3280ft | 4265ft | 5249ft | 6561ft | |||
| Nm3/hr | NI/min | cfm | 50m | 100m | 150m | 300m | 500m | 750m | 1000m | 1300m | 1600m | 2000m |
| 10 | 167 | 6 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 25 | 25 | 25 |
| 30 | 500 | 18 | 16.5 | 16.5 | 16.5 | 25 | 25 | 25 | 25 | 25 | 25 | 40 |
| 50 | 833 | 29 | 16.5 | 25 | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 40 |
| 70 | 1167 | 41 | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 40 | 40 | 40 |
| 100 | 1167 | 59 | 25 | 25 | 25 | 40 | 40 | 40 | 40 | 40 | 40 | 63 |
| 150 | 2500 | 88 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 63 | 40 | 63 |
| 250 | 4167 | 147 | 40 | 40 | 40 | 40 | 63 | 63 | 63 | 63 | 63 | 63 |
| 350 | 5833 | 206 | 40 | 40 | 40 | 63 | 63 | 63 | 63 | 63 | 63 | 76 |
| 500 | 8333 | 294 | 40 | 40 | 63 | 63 | 63 | 63 | 63 | 76 | 63 | 76 |
| 750 | 12500 | 441 | 40 | 63 | 63 | 63 | 63 | 76 | 76 | 76 | 76 | 100 |
| 1000 | 16667 | 589 | 63 | 63 | 63 | 63 | 63 | 76 | 76 | 100 | 76 | 100 |
| AIR FLOW | SYMBOL | CONVERT TO | CONVERSION FACTOR |
|---|---|---|---|
| Cubic feet per minute | scfm | m3/h | x1.699 |
| Cubic feet per minute | scfm | m3/min | x0.0283 |
| Cubic feet per minute | scfm | I/min | x28.316 |
| Cubic feet per minute | scfm | I/sec | x0.4719 |
| Cubic meters per minute | m3/min | scfm | x35.315 |
| Cubic meters per minute | m3/h | scfm | x05885 |
| Liters per minute | I/min | scfm | x0.0353 |
| Liters per second | I/sec | scfm | x2.119 |

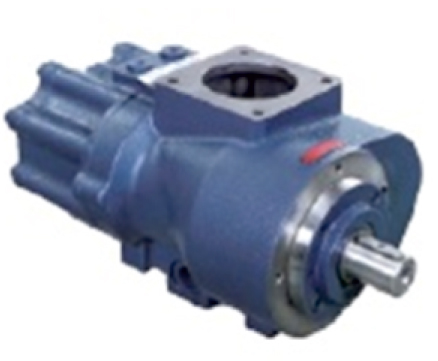

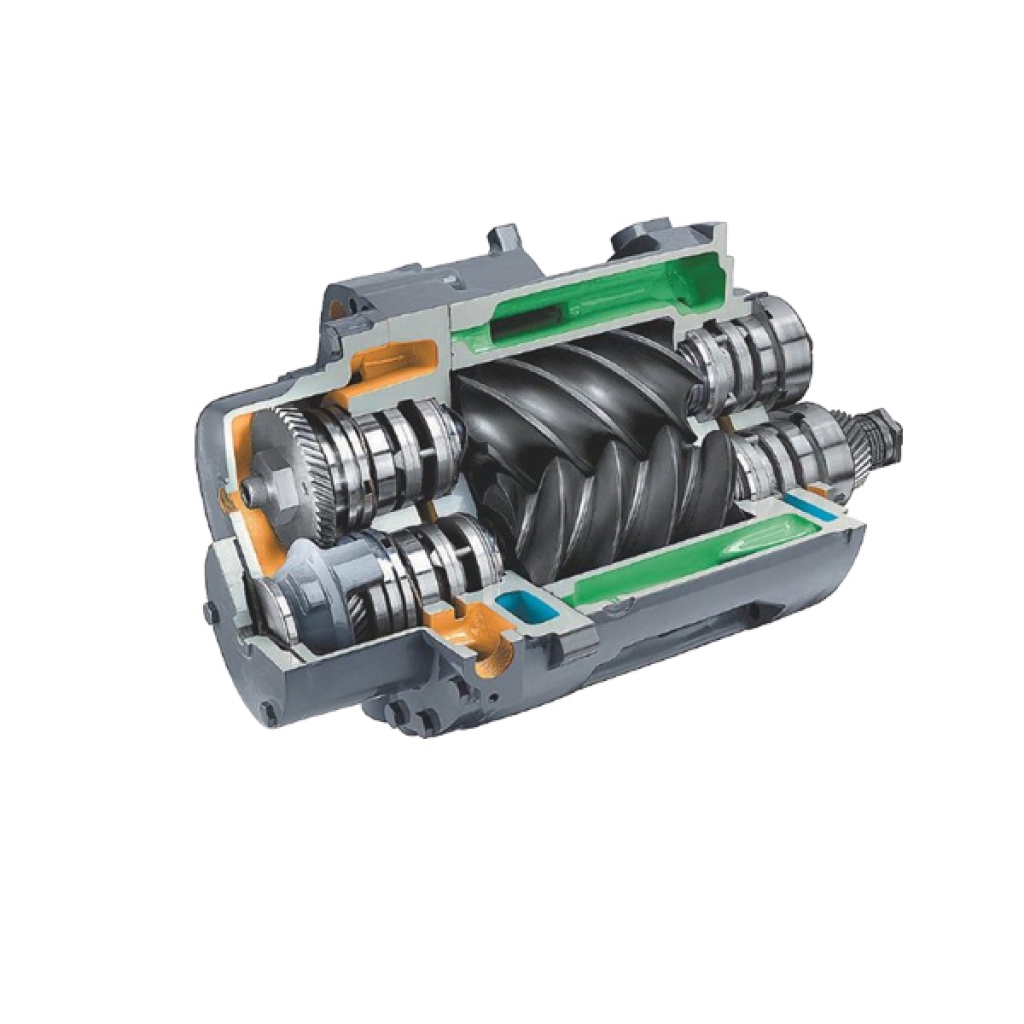

Adopts the international top-level third-generation asymmetric wire twin-screw air end, adheres to the exquisitemanufacturing process, adopts the peak high efficiency low-pressure, high-efficiency tooth shape and the axialair inlet design. Optimized flow channel design, with a large rotor, low speed and high efficiency. Increased energy efficiency by 5% -15% compared to the second generation.

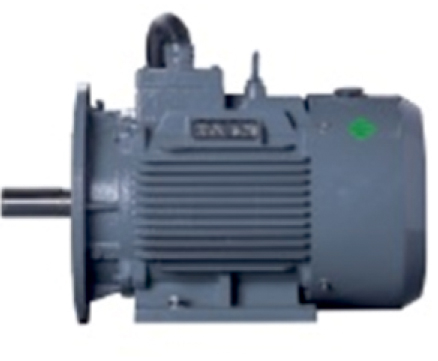

The motor uses high-performance motors of well-known brands. Permanent magnet synchronous motors (PMmotor) use high-performance NdFeB permanent magnets which will not lose magnetism under 200° and itsservice life reaches as long life. The stator coil uses the frequency converter special halo proof enamelled wire; the insulation is outstanding andthe service life is longer. The motor has the function of temperature protection. It also has a wide range of motor speed regulation, highprecision and wide range of volume regulation. The reliability is significantly improved with small size, low noiseand large excess current. Protection grade IP55, insulation grade F, effectively protects the motor and increases the service life of the motor,the efficiency is 5%-7% higher than similar products.

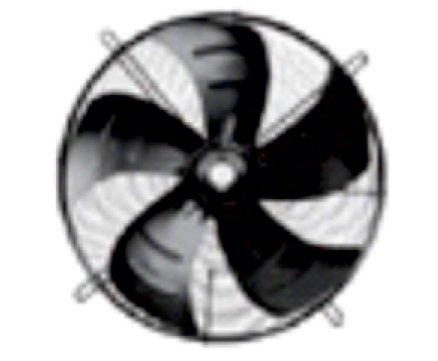

The fan uses a large fan design to effectively enhance the fan's heat dissipation effect. The motor adopts a special internal design to adapt to harsh working conditions. The fan motor adopts special winding and high protection grade design to adapt to harsh working conditions. The fan is controlled by the controller to realize the automatic start and stop function, which effectively maintains the normal working temperature of the air compressor lubricant.

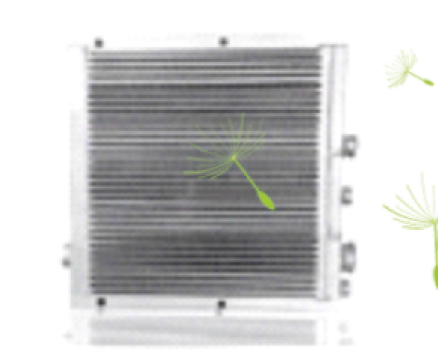

The heat exchanger uses high-quality raw materials and a unique internal channel design, which increases the heat exchange area and can effectively dissipate heat for the air compressor. The inner wall of the heat exchanger is treated with corrosion protection to increase the service life of the heat exchanger and increase the heat transfer effect. The radiator has passed the strict factory test, and the quality is reliable, which effectively prevents the high temperature of the air compressor and increases the service life of the machine.

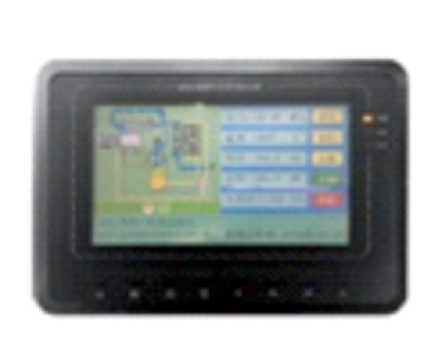

Adopts PLC multilanguage control system, beautiful and intuitive interface, easy to operate function, operators can quickly and easily adjust the compressor. 14 protection functions such as overload protection, short circuit protection, reverse protection, low temperature protection, high voltage protection, etc. to fully protect the unit. The advanced microcomputer control drive system realizes intelligent control, air volume variable speed control, automatic adjustment of load start and soft start. Intelligent dynamic control, dynamic display of the working status of each component of the compressor, visual pressure, temperature, current working curve, etc. Large memory and equipped with printer interface; It can use computer remote monitoring or multiple linkage control between air compressors.

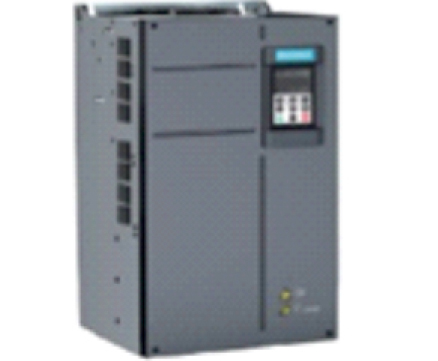

The standard is equipped with high frequency reactor, effectively reducing the frequency converter and the external magnetic field dry reactance. Reliably reduces peak current when it is started, realizes stable starting. 3. With high-performance current vector technology, it can easily drive induction motors. 4. High performance, high quality and high-power density design, as well as significant improvements in usability, maintainability, environmental protection, installation space, and design standards, can further optimize the user experience. Independent air duct design, resistances to all kinds of severe environmental pollution. 6. Rapidly track the change of pressure and control pressure fluctuation within ±0.01Mpa, optimal power is used to accurately provide necessary air.

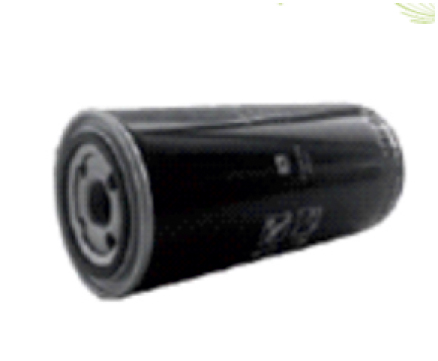

Adopts high-density filter material, the surface is treated with nano-electroplating. The filter element has uniform pore size, small filter resistance, large flux, strong interception ability and long service life. High filtration accuracy effectively filters impurities in lubricating oil, prolongs the service life of the equipment.

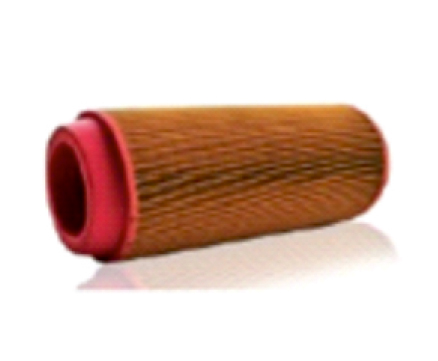

Adopting a design with high dust holding capacity and low flow resistance, which can filter out tiny fixed particles in the air. The dust removal effect can reach 99.5%, ensuring the normal operation of the components of the system and extending the service life.

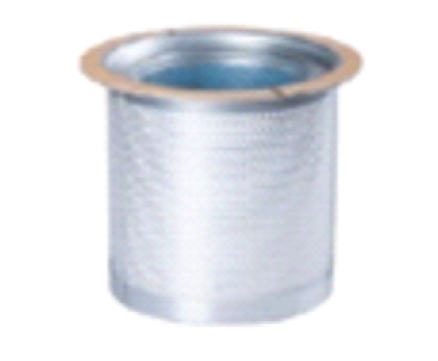

The high-quality air-oil separation element and gas-liquid filter element are equipped with advanced three-stage air-oil separation to keep the oil content below 3ppm to ensure the output of high-quality compressed air.
